An optical sensor is a device that detects and converts light rays into electrical signals, allowing it to measure different physical properties such as distance, brightness, motion, temperature and pressure via optical methods.

The global optical sensor market was worth around \$25–28 billion in 2025 and is expected to reach approximately \$71.7 billion by 2035 ¹⁾. This increase is directly linked to progress in automation, imaging and environmental monitoring technologies, as well as to the needs of the automotive, medical and industrial sectors.

Thanks to the wide range of optical sensor technologies, a variety of applications are possible. These include consumer electronics, automotive camera systems, industrial machine vision and medical imaging etc.

The family of optical sensors is divided into different technology segments, which vary in terms of light sources, detection methods, and applications :

Image sensors

An image sensors convert light into electronic signals. The two most common types of image sensor are the charge-coupled device (CCD) and the active pixel sensor (CMOS).

CMOS sensors use pixel-level transistors to enable faster, more energy-efficient processing, while CCD sensors transfer charge across the chip to deliver superior image quality, but at the cost of slower speed and higher power consumption.

CMOS sensors are widely used in the consumer electronics sector. They are particularly used in mobile devices such as smartphones, tablets, and digital cameras.

Photoelectric sensors

Photoelectric sensors consist of a light emitter and a receiver. The light emitter uses a light-emitting diode (LED) to produce modulated pulses of light. The receivers contain photodiodes that convert the incoming light into electrical signals. These signals are then amplified and processed before being sent to the controller.

The three most common types of photoelectric sensor are through-beam, retro-reflective and diffuse reflection sensors²⁾.

Photoelectric sensors are among the most common sensors used in industrial automation. They have many possible applications, including presence detection and safety protection. They can also offer relatively long operational distances for presence detection compared to other sensors.

Fiber optic sensors

A fiber optic sensor is a device that measures physical conditions using light transmitted through an optical fiber. « Optical signals are transmitted through a glass fiber. If external influences such as temperature, strain, pressure, or vibration change along the fiber or at its end, the measurable properties of the light change »³⁾.

The glass fiber acts as the sensor. Therefore, it is electrically insulating and immune to electromagnetic interference and corrosion and is ideal for extreme environments. Fiber optic sensors are mainly used in the industrial, energy, and environmental monitoring sectors.

Active ranging sensor modules

An active ranging sensor module is a device that measures the distance to an object by sending out energy and analyzing the signal that comes back, using interferometry, time of flight, or triangulation methods⁴⁾.

The most common types of active ranging sensor modules are ultrasonic sensors, LiDAR (Light Detection and Ranging) and radar sensors.

Infrared (IR) and Thermal Sensors

Infrared (IR) sensors and thermal sensors are generally considered part of the image sensor family, but they operate differently from standard visible-light image sensors. Infrared cameras primarily detect near-infrared light (close to the visible spectrum), while thermal imaging cameras detect mid- and far-infrared radiation (generated by the heat of objects)⁵⁾.

They can also be applied to non-imaging sensors technology, such as passive infrared sensors (PIR) for motion detection, gas sensors, spectroscopy detectors and more.

This study will focus on image sensors, which dominate the market for optical sensors⁶⁾ and are used in many applications, including consumer electronics, automotive camera systems, industrial machine vision, and medical imaging.

The main parts of a CMOS image sensor are the following:

• Microlens : Focus the light and direct it to the photodiode
• Color filter : Designate light colors
• Photodiode : Absorbs the light and converts it into an electrical charge
• Transisors : Control the signal flow and processing
• Package : Protect the chip and provide connections to the electronics that will use the image.

Sources ^{7) 8) 9) 10)}

This study will focus on the CMOS optical sensor.

Exclusion of other sensors such as Photoelectric sensors, Active ranging sensor modules, Infrared sensors, etc.

Exclusion of the component for the image-processing system (PCB, controllers, etc.).

“Manufacture of a CMOS image sensor”

One square meter of CMOS image censor.

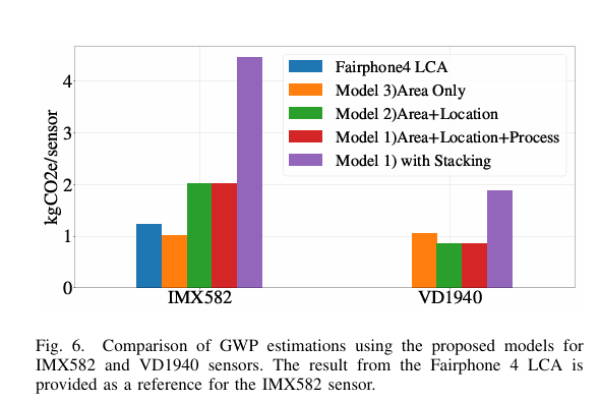

This section summarises the information from Weppe and Al's 2024 study.¹¹⁾

Streamlined GHG emission model based on a linear relationship between silicon die surface area and Global Warming Potential (GWP), expressed in gCO₂eq. The model follows: $$G_{Fab} = \sum_{i=1}^{N} S_i \cdot (E_i \cdot T_{loc} +K_i)$$ G_Fab : Global Warming Potential (GWP) of the fabrication ( gCO₂ eq)
S_i : the surface of layer i
E_i : electrical energy consumption of layer i
T_loc : electrical carbon intensity of the location of fabrication
K_i : ancillary impact of the layer (infrastructure, factory, chemicals and raw materials)

The value of K_i and E_i are taken from ¹²⁾

CMOS Image Sensor (CIS). Parameters affecting the scope: * CCD / CMOS * Mono / color sensor * Resolution → sensor size * Pixel size → sensor size * Stacking

* Silicon die fabrication * Electricity consumption over lifespan

Generic semiconductor data for a CIS. The following are excluded: * Lens * Color filter array * Other optical components

Known hotspots : silicon die manufacturing, electricity consumption over lifespan, 2D/3D die stacking (factor 2 difference)

Uses generic semiconductor data for a CIS, and therefore does not account for the specificities of CMOS image sensors, such as the lens, the color filter array, or other optical components.

⇒ Goal: Define state of the art on life cycle stages to be considered.

TBC

⇒ Goal: List the technical information needed for the LCI.

⇒ Goal: List the technical information needed for the LCI.

• Sony corporation (Japan, Integrated Device Manufacturer (IDM))
• Samsung Electronics (South Korea, IDM)
• OmniVision Technologies (US, fabless)
• onsemi (US, IDM)
• STMicroelectronics (CH, IDM)

Source

⇒ Goal: List the technical information needed for the LCI.

Not in the scope

Not in the scope

⇒ Goal: List challenges and clarify priority areas for action
